12000 Lumens 3D Mapping Projector Ideal for Museums and Cultural Events

Delivery Time : 7-15days

Light Source : Laser

Display Type : LCD

Brightness : 12000 Lumens

Payment Terms : T/T,Western Union

Lamp Life : 20,000 Hours

Technology : 3LCD Laser

Application : Museums, Cultural Events, 3D Mapping

Len Type : Motorized/Manual Lens

MOQ : 1Pc

Brand Name : SMX

Resolution : WUXGA

Product Name : 3LCD Laser Projector

Place of Origin : China

Supply Ability : 15000pcs/monthly

Model Number : MX-X12000U

Packaging Details : Carton

Control : Remote

Features : Immersive Digital Art

Certification : ISO,CE,ROHS

Contact Now

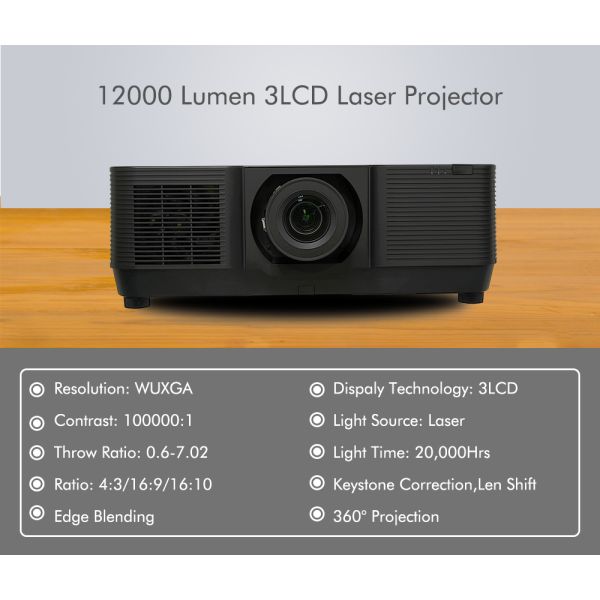

MX-X12000U: Professional 12,000 Lumens WUXGA Laser Projector

The Ultimate Visual Engine for 3D Mapping, Large Venues, and Immersive Digital Art

12000 Lumens 3D Mapping Projector Ideal for Museums and Cultural Events

Core Performance Highlights

Extreme Brightness: 12,000 ANSI Lumens ensure vivid, punchy images even in high-ambient light environments
Superior Color Accuracy: Powered by 3LCD technology, delivering equal Color and White Brightness for lifelike, natural skin tones and vibrant graphics
4K Compatibility: Native WUXGA (1920x1200) resolution with support for 4K@30Hz signal input
Maintenance-Free Reliability: Laser light source rated for 20,000 hours with fully enclosed internal circulation cooling system
Ultra-High Contrast: 2,500,000:1 dynamic contrast ratio for deep blacks and exceptional detail in dark scenes

Unmatched Engineering Flexibility

Engineered for demanding installation environments with full professional control

360° Omnibearing Installation: Supports projection at any angle—ceiling, floor, or portrait—perfect for creative sky-mapping or interactive floor displays
Motorized Lens Shift: Features massive vertical (+50%/-10%) and horizontal (±20%) shift, allowing precise image alignment without moving the chassis
Interchangeable Lens Options: Choose from 6 optional lenses ranging from Ultra-Short Throw (0.6:1) to Long Throw (7.02:1) to adapt to any venue size or throw distance

Advanced Tools for 3D Mapping & Integration

Designed specifically for multi-projector setups and complex surfaces

Built-in Edge Blending: Seamlessly combine multiple projectors to create massive, panoramic displays without external hardware

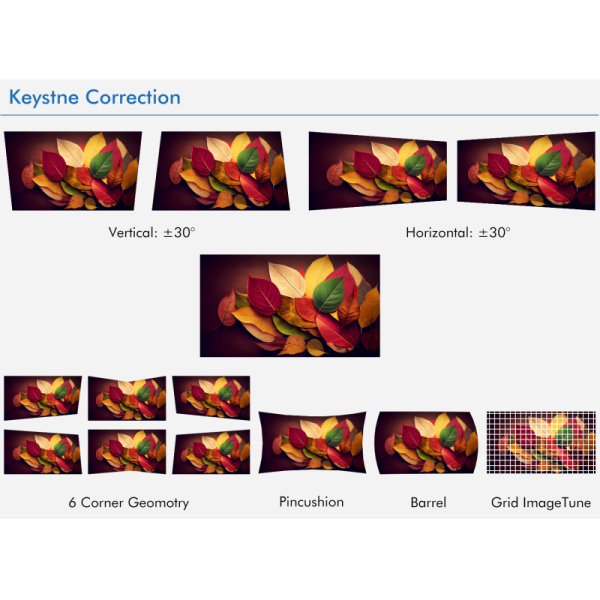

Geometric & Grid Correction (ImageTune): Easily correct image distortion on curved, spherical, or irregular surfaces using 6-corner geometry and precision grid adjustment

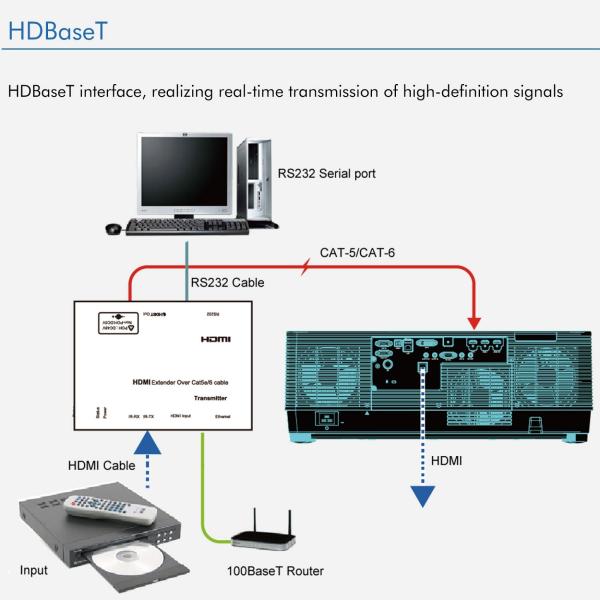

HDBaseT™ Support: Transmit uncompressed Full HD video, audio, and control signals over a single CAT6 cable up to 100 meters

Industrial-Grade Durability

Dust-Free Design: Completely sealed optical engine prevents dust from degrading internal components, ensuring long-term brightness stability
Instant On/Off: Zero-second cooling technology allows for immediate power-down after use, increasing operational efficiency for events

Key Applications

3D Architectural Mapping: Transform landmarks and building facades into dynamic digital canvases

Immersive Art Exhibitions: Create 360-degree "walk-in" visual experiences for museums and galleries

Large Auditoriums & Houses of Worship: Provide high-impact visuals for large audiences with absolute clarity

Command & Control Centers: Reliable 24/7 performance for mission-critical monitoring

Technical Specifications

Model	MX-X12000U
Brightness (ANSI Lumens)	12,000 lumen
Resolution	WUXGA (1920 x 1200)
Light Source	Laser
Display Panel	3x0.76"
Display Technology	Liquid Crystal Display
Light Source Lifetime	Normal/ECO mode: 20,000 hours
Throw Ratio (16:10)	1.46-2.95
Zoom Ratio	2
Screen Size	40-500 inch
Lens Shift Vertical	+50%, -10%
Lens Shift Horizontal	±20%
Contrast Ratio	100,000:1 (Minimum)
Noise Level	Normal (90%): 35dB, ECO1 (75%): 32dB, ECO2 (45%): 32dB
Uniformity	80%
Aspect Ratio	Native: 16:10, Compatible: 4:3/16:9/normal

Why Partner With Us?

As a leading manufacturer of high-specification laser projectors, we provide the hardware and technical support needed to bring your most ambitious creative visions to life. From customized lens solutions to global technical assistance, we are your partner in professional display technology.
